Name: Carton Erecting Machine Single Lan Box Packaging Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo L800-A
Price: 253.00 USD
Availability: InStock

Carton Erecting Machine Single Lan Box Packaging Machine

1SET

MOQ

Dapat dinegosiasikan

harga

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Product Name: Automatic Paper Box Making Machine

Max. Production capacity: 200 PCS/min (It depends on paper material, size and box type)

Suitable Material: 150-400gsm paper board, corrugated board paper with thickness not exceed 1.5 mm

Blank length(L): 100-450mm

Blank width(B): 100-680mm

Height of side flaps(H): 15mm-230mm

Height of side flaps+lid(H1): 50mm-230mm

Conicity: 5°-40°

Air Pressure: 0.6 Mpa dry and clean compressed air

Total Power:: 8 KW

Voltage: 380V/ 50Hz

Informasi dasar

Place of Origin: China

Nama merek: EcooGraphix

Sertifikasi: CE; ISO

Model Number: Ecoo L800-A

Syarat-syarat pembayaran & pengiriman

Packaging Details: Standard Exporting Package: Polywood Carton

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Sets/ Year

Galeri

Carton Erecting Machine Single Lan Box Packaging Machine

Deskripsi Produk

Carton Erecting Machine Single Lan Box Packaging Machine

Carton Erecting Machine Single Lan Box Packaging Machine 0

Model: L800-A

Brief Introduction

EcooGraphix Carton Erecting Machine is designed and manufactured according to high standards, stable and high efficient.

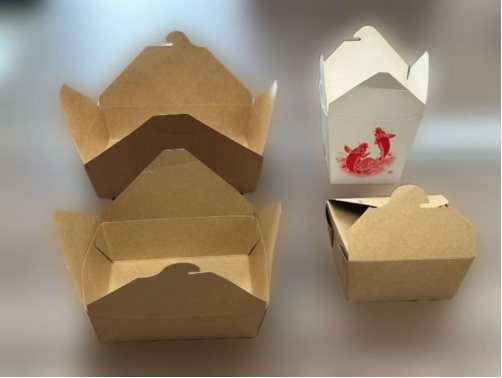

The finished products are automatically counted. It can be customized to do different size and shaped boxes through changing mold. (hamburger box, fried chips box, paper tray, noodle box, lunch box and other food container).

Specification

Type	L800-A
Max. Production capacity	200 PCS/min (It depends on paper material, size and box type)
Suitable Material	150-400gsm paper board,corrugated board paper with thickness not exceed 1.5 mm
Blank length(L)	100-450mm
Blank width(B)	100-680mm
Height of side flaps(H)	15mm-230mm
Height of side flaps+lid(H1)	50mm-230mm
Conicity	5°-40°
Air Pressure	0.6 Mpa dry and clean compressed air
Total Power:	8 KW
Voltage	380V/ 50Hz

More Details

L800-A adopts servo system to control the punching head. So L800-A is easier to change different boxs.
L800-A is better to make eight corners boxes.

Carton Erecting Machine Single Lan Box Packaging Machine 2

Box Type

Carton Erecting Machine Single Lan Box Packaging Machine 3

Carton Erecting Machine Single Lan Box Packaging Machine 4

Carton Erecting Machine Single Lan Box Packaging Machine 5
